MARADYNE 16" High performance Reversable Skew Blade
Maradyne 16″ Thermo Fan Champion Series 12v – 225w. 16 in., low profile, reversible “S” blade fan with 225 watt motor.
MARADYNE® design only the highest quality components into their fan assemblies. All plastic components are moulded from engineering grade glass-filled nylon resin. All motors are designed for long life, durability and harsh environments. These motors perform not only on the race track, but also in extreme off-road conditions.
Features:
Lowest profile high performance reversibles on the market
Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68
Quiet, reversible S-blade design works as a puller or pusher fan (ships as a puller)
All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit
Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger
Specifications:
Model: M162K
Motor: 225w
Current Draw: 18.0A

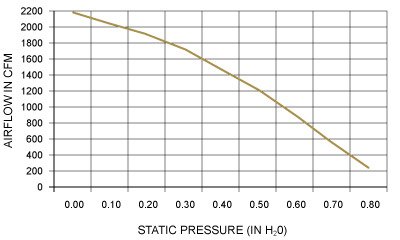

CFM @ 0 in. Static: 2,170
Depth: 3.19 in.
Maradyne 16″ Thermo Fan Champion Series 12v – 225w. 16 in., low profile, reversible “S” blade fan with 225 watt motor.
MARADYNE® design only the highest quality components into their fan assemblies. All plastic components are moulded from engineering grade glass-filled nylon resin. All motors are designed for long life, durability and harsh environments. These motors perform not only on the race track, but also in extreme off-road conditions.
Features:
Lowest profile high performance reversibles on the market
Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68
Quiet, reversible S-blade design works as a puller or pusher fan (ships as a puller)
All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit
Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger
Specifications:
Model: M162K
Motor: 225w
Current Draw: 18.0A
CFM @ 0 in. Static: 2,170
Depth: 3.19 in.
Maradyne 16″ Thermo Fan Champion Series 12v – 225w. 16 in., low profile, reversible “S” blade fan with 225 watt motor.
MARADYNE® design only the highest quality components into their fan assemblies. All plastic components are moulded from engineering grade glass-filled nylon resin. All motors are designed for long life, durability and harsh environments. These motors perform not only on the race track, but also in extreme off-road conditions.
Features:
Lowest profile high performance reversibles on the market
Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68
Quiet, reversible S-blade design works as a puller or pusher fan (ships as a puller)
All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit
Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger
Specifications:
Model: M162K
Motor: 225w
Current Draw: 18.0A
CFM @ 0 in. Static: 2,170
Depth: 3.19 in.
